FESTO SOLENOID VALVES
General information:
• Particularly sturdy poppet valve principle for all 3/2- and 5/2-way valves
• Pneumatically actuated or electrically with F solenoid coil
• With flow rate performance of up to 7500 l/min
• With internal or external pilot air
• Pipe connection thread in sizes G1/8, G1/4, G1/2 and G3/4
• Proven mounting using hollow bolt on PAL or PRS rail (without ATEX category)
• Optimised switching times thanks to patented U-ring and servo control
• Note: Valves for potentially explosive atmospheres (ATEX category) are not suitable for mounting on PAL manifold rails or PRS manifold blocks.
F solenoid coils:
• Voltage 12 to 230 V DC; 12 to 240 V AC (50 to 60 Hz)
• Power consumption 4.1 to 5.5 W DC; 3.85 to 9 VA AC
• Selected types in accordance with the ATEX directive for potentially explosive atmospheres
• Solenoid coil can be easily replaced at a later date
• Solenoid coil not included in the scope of delive
FESTO MFH-5-1/4

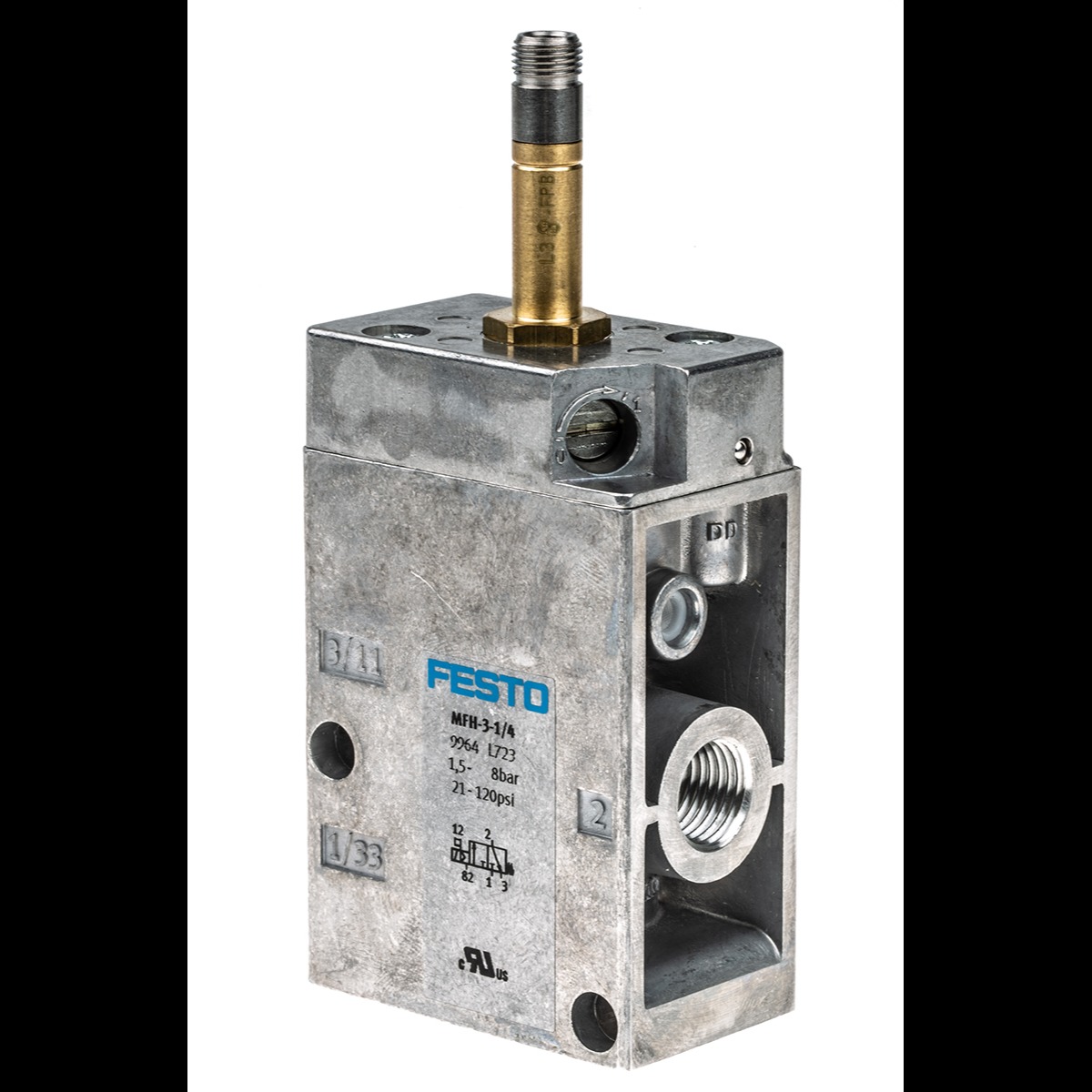

FESTO MFH3-1/4
FESTO MFH-5-1/8
FESTO MFH-3-1/8
MFH SERIES
