Suction cup with connection VAS, VASB
The VAS(B) series is the right solution for transporting workpieces with a wide range of weights, surfaces and shapes.
Sturdy and reliable
Suction cups with fixed connecting thread
11 suction cup diameters
Round suction cup, bellows
Vacuum connection on top, on side
Screw-in thread
Variants suitable for battery production according to F1A
Vacuum generators with sturdy aluminium housing for direct connection of a suction cup.
• Compressed air flowing from 1 to 3 generates a vacuum at port 2 in accordance with the ejector principle.
• The low exhaust air noise during blowing can be further dampened by using a silencer in port 3.
• Workpieces can bepicked up in any position.When the compressed air is switched off, suction stops and the vacuum breaks down.
• During suction with vacuum generator VAK, a volume of approx. 32 cubic centimetres is filled with compressed air. This creates an ejector pulse when the input pressure is switched off, reliably releasing the workpiece from the suction cup.
• Max. switching frequency approx. 10 Hz at 6 bar and with approx. 1 m of suction line.
1) Angle gripper DHWC
2) Angle gripper HGWM
3) Angle gripper DHWS
The economical angle gripper with high repeat accuracy and high torque is particularly suitable for small parts handling and its low dead weight, compact design and long service life are really impressive.
Lateral gripper jaw support for high torque loads
Max. repetition accuracy
Can be used as a double-acting or single-acting gripper
Single-acting variant with gripping force backup, normally open (NO)
Suitable for external and internal gripping
Wide range of adaptation options on the drives
Sustainable in production thanks to reduced use of materials
1) Three-point gripper HGDD
2) Three-point gripper DHDS
3) Three-point gripper HGDT
Fully sealed grippers for harsh environments. Exterior and interior gripping possible.
Precise gripping with centric movements despite high torque loads
Ideal for very harsh environments
5 sizes with stroke/jaw of up to 12 mm
Can be used as a double- and single-acting gripper
Single-acting variant or with gripping force backup, normally open (NO) or normally closed (NC)
Suitable for external and internal gripping
1) Parallel gripper DHPS
2) Parallel gripper HGPT
3) Parallel gripper DHPC
4) Parallel gripper DHPL
5) Parallel gripper HPPF
6) Parallel gripper EHPS
7) Parallel gripper HPPH
8) Parallel gripper HGPM
9) Parallel gripper HGPP
10) Parallel gripper HGPL
The oval piston provides the standard gripper with a powerful grip in many application situations.
Sturdy and precise T-slot guidance of the gripper jaws
High gripping force and compact size
Max. repetition accuracy
Can be used as a double- and single-acting gripper
Single-acting variant or with gripping force backup, normally open (NO) or normally closed (NC)
Suitable for external and internal gripping
Wide range of adaptation options on the drives
1 ) One-way flow control valve, in-line installation GR
Shut-off/flow control valve in sturdy plastic design.
Non-return and flow control valve
In-line installatio
2 ) One-way flow control valve, M5 compact system GRF
Shut-off/flow control valve on adapter plate for mounting frame 2N.
Complete system offering control components with all the functions required for pneumatic sequence control
For control cabinet installation
Fast replacement of components
1 ) One-way flow control valve VFOE
Barely thicker than a tube and just as lightweight, the one-way flow control valve can be mounted directly on the drive.
Low-cost solution for standard applications
Simple and reliable adjustment of pneumatic cylinder speed
Extremely easy assembly
Fast commissioning
Compact dimensions

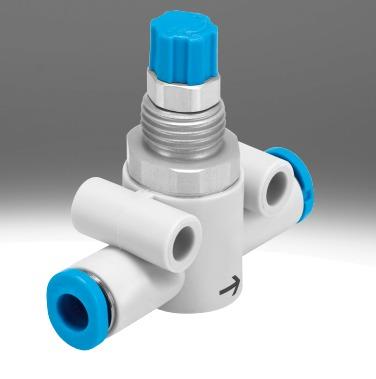

2 ) One-way flow control valve GRxA, GRxZ
Tried and tested for precise adjustment of the flow rate.The combination of polymer and metal makes it lightweight, compact and sturdy.
Functional combination of one-way flow control valve and piloted check valve
Flow control valve, flow control at one end
Polymer, metal or stainless steel design
Standard, mini, in-line variants with different flow rates
Connections: thread at both ends, push-in connector at both ends, thread/push-in connector
1 ) Quick exhaust valve SE, SEU
Screw-in exhaust air control with balanced noise emission.
Valve function: quick exhaust
Shut-off valve, piloted
Screw-in
With or without silencer
2 ) Quick exhaust valve VBQF
Flat screw-in exhaust air control with reduced noise emission.
Minimal height
High flow rate
Reduced noise emission
Available with silencer
Available with ducted or unducted exhaust air
For higher cycle times
1) Piloted check valve HGL
Shut-off valve with manual override option.
Valve function: piloted non-return function
Screw-in with male thread
Pneumatically piloted
Pilot air connection: M5, G1/8, G1/4, G3/8, QS-4
Manually actuated exhaust possible with separate accessory
2)Piloted check valve VBNF
Flat, rotatable shut-off valve with manual override option.
Valve function: piloted non-return function
Minimal height
High flow rate
Can be rotated horizontally through 360° in assembled state
Manually actuated exhaust possible
3) Check valve H, HA, HB
Screw-in check valve.
Valve function: non-return function
Screw-in or in-line installation
With connecting thread at both ends, push-in connector at both ends, thread/push-in connector

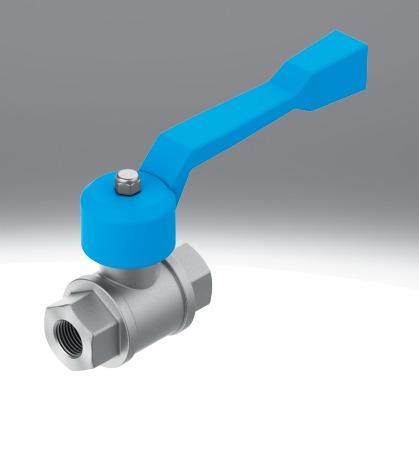

1) Ball valve QH
Manually operated shut-off valve in sturdy polymer design.
Shut-off valve, manually operated
In-line installation
Female thread at both ends
With hand lever
Pipe thread to ISO 2281
Manual lever-operated ball valve
2/2-way shut-off function
Suitable for compressed air systems
Threaded or push-in (QS) connection options
Soft sealing & compact design
Screw-in / inline mounting availabl
Operating pressure: approx. –1 to 10 bar
Operating medium: compressed air (ISO 8573-1)
Temperature range: 0 to 60 °C
Flow rate: depends on size (approx. 148 – 560 l/min for QS types; much higher for threaded sizes)
FESTO QH-1/4 (G1/4)
FESTO QH-3/8 (G3/8)
FESTO QH-1/2 (G1/2)
FESTO QH-3/4, QH-1, QH-1½
FESTO QH-QS-4 / QS-6 push-in tube type
2) Ball valve QH-QS, QHS-QS
Manually operated shut-off valve in sturdy polymer design and with plug connections
Shut-off valve, manually operated
In-line installation, can be screwed in, bulkhead fitting
Variants: thread at both ends, push-in connector at both ends, thread/push-in connector
3) Shut-off valve HE
Manually operated valve in sturdy polymer design.
Shut-off valve, manually operated
Connection: thread at both ends, push-in connector at both ends, thread/push-in connector
Different mounting options
4) Hand slide valve VBOH
Elegant, non-overlapping shut-off valve for high flow rate and operating pressure.
Used as a shut-off function for pressurising and exhausting compressed air systems, for example upstream of service units, for air guns and also for exhausting pneumatic cylinders
Non-overlapping, so no pressure losses when switching
Minimal installation effort
3/2-way valve, monostable
• Normally open, normally closed
• Mechanical spring
• Vacuum operation possible
• Directly actuated and pneumatically
pilot-operated
• Ducted exhaust air
4/2-way valves, monostable
• Mechanical spring
• Pneumatically pilot operated
• Ducted exhaust air
5/2-way valve, monostable
Pneumatic spring/mechanical
spring
• Vacuum operation possible
• Reversible in some cases
• Pneumatically pilot operated
• Ducted exhaust air
1) 3/2
• Normally open/closed
• Mechanical spring
• Vacuum operation possible
• Directly actuated
• Ducted exhaust air
• detenting (bistable) or non-detenting (monostable)
2) 5/2
• Mechanical spring
• Vacuum operation possible
• Directly actuated
• Ducted exhaust air
• detenting (bistable) or non-detenting (monostable)
Innovative:
• Small and compact for a wide range of pneumatic applications
• Numerous valve functions can be selected: 3/2-way and 5/2-way functions
• With a flow rate of up to 600 l/min, the valves offer outstanding pneumatic performance for a wide range of applications
• Lightweight
• Minimal actuating forces
Versatile:
• The flexibility of pneumatic working ports provides a practical way of solving individual requirements
• Round silencer for ducted exhaust air
• Partially suitable for vacuum
• Partial reverse operation possible
• Actuation: direct
• Pressure range from vacuum to 10 bar possible
• Design as pushbutton valve, toggle lever valve, hand lever valve, finger lever valve or foot valve
Operationally safe:
• Durable thanks to proven poppet valves
• Sturdy thanks to metal or polymer housing and connection thread or connecting pieces
