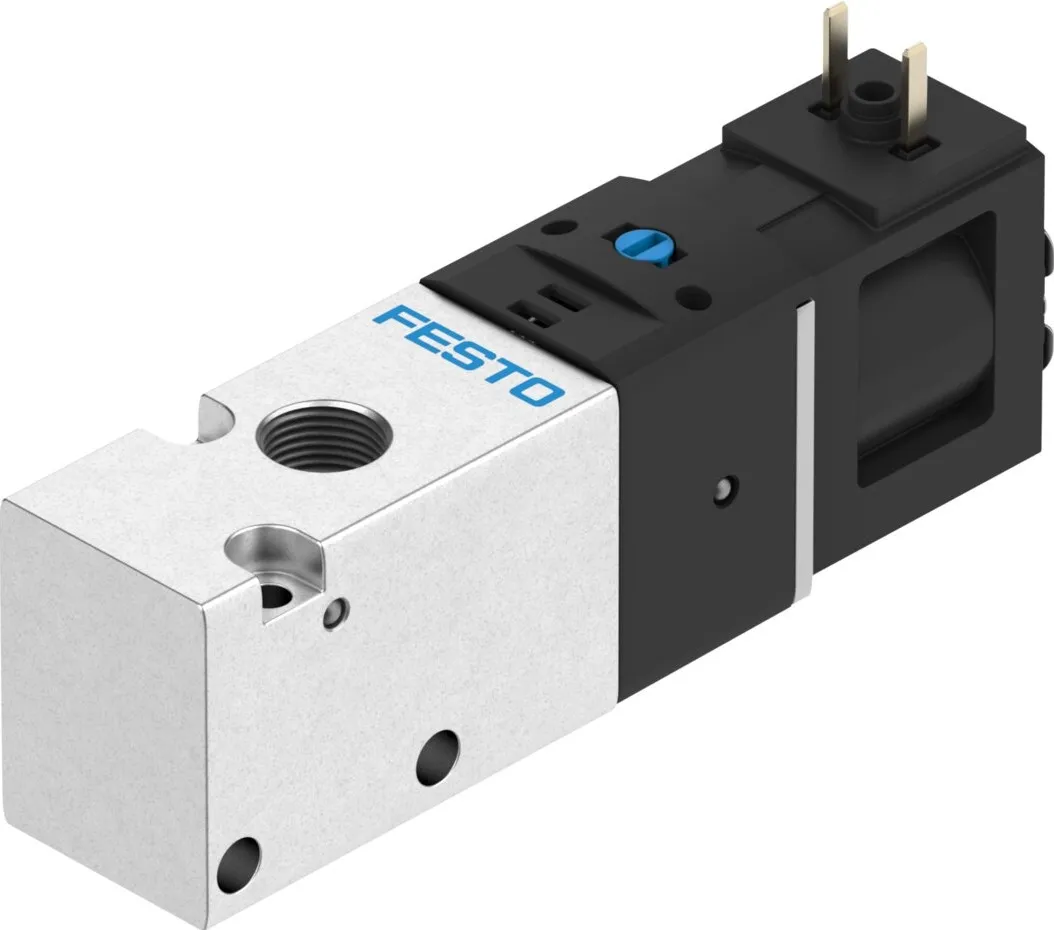

FESTO VUVS-LK20-M32C-AD-G18-1C1-S (Part No. 8043213)
The FESTO VUVS-LK20-M32C-AD-G18-1C1-S is a compact and reliable 3/2-way normally closed solenoid valve from the VUVS series, designed for efficient pneumatic control in industrial automation systems. This electrically actuated valve features a robust piston spool design, internal pilot operation, and pneumatic spring return, ensuring dependable switching performance and long service life. It is ideal for controlling compressed air in machinery, automation equipment, packaging systems, and process control applications.
3/2-way, normally closed, monostable valve
Electrical actuation with 24 V DC coil
Standard nominal flow rate: 550 l/min
G1/8 pneumatic port connections
Operating pressure range: 1.5 to 8 bar
Compact 21 mm valve size
Internal pilot air supply
Pneumatic spring return
Manual override (detenting/non-detenting)
IP65 protection with plug socket
The FESTO VUVS-LK20-M32C-AD-G18-1C1-S is a compact and reliable 3/2-way normally closed solenoid valve from the VUVS series, designed for efficient pneumatic control in industrial automation systems. This electrically actuated valve features a robust piston spool design, internal pilot operation, and pneumatic spring return, ensuring dependable switching performance and long service life. It is ideal for controlling compressed air in machinery, automation equipment, packaging systems, and process control applications.
3/2-way, normally closed, monostable valve
Electrical actuation with 24 V DC coil
Standard nominal flow rate: 550 l/min
G1/8 pneumatic port connections
Operating pressure range: 1.5 to 8 bar
Compact 21 mm valve size
Internal pilot air supply
Pneumatic spring return
Manual override (detenting/non-detenting)
IP65 protection with plug socket
