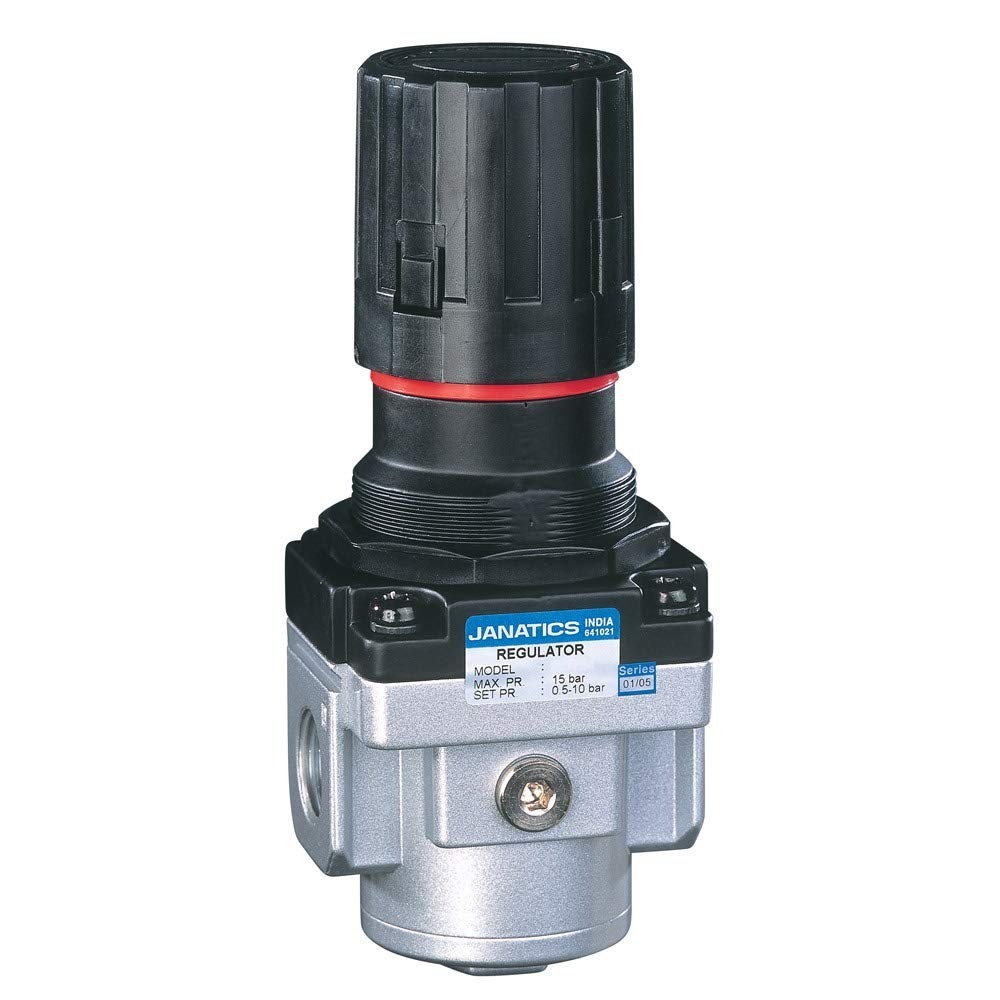

The Janatics Air Regulator is designed to control and maintain the required air pressure within pneumatic systems. It provides a stable and adjustable outlet pressure, which protects pneumatic equipment and ensures the efficient operation of air cylinders, solenoid valves, and other pneumatic components. Janatics pressure regulators are suitable for industrial automation, manufacturing machinery, and compressed air preparation systems.
Brand: Janatics
Product Type: Pneumatic Air Pressure Regulator
Series: R1 / R13 / R14 / R15 / R17 (depending on the model)
Port Size: G1/4, G3/8, G1/2, G3/4, and G1
Maximum Supply Pressure: Up to 15 bar
Pressure Regulation Range: 0.2–2, 0.2–4, 0.5–7, or 0.5–10 bar (depending on the variant)
Flow Rate: Approximately 600–6, 000 L/min (depending on the model)
Temperature Range: Depends on the model; Typically 5°C to 60°C
Mounting: Panel or modular mounting
Features: Pressure adjustment knob, relieving function, balanced poppet, and optional pressure gauge.
Brand: Janatics
Product Type: Pneumatic Air Pressure Regulator
Series: R1 / R13 / R14 / R15 / R17 (depending on the model)
Port Size: G1/4, G3/8, G1/2, G3/4, and G1
Maximum Supply Pressure: Up to 15 bar
Pressure Regulation Range: 0.2–2, 0.2–4, 0.5–7, or 0.5–10 bar (depending on the variant)
Flow Rate: Approximately 600–6, 000 L/min (depending on the model)
Temperature Range: Depends on the model; Typically 5°C to 60°C
Mounting: Panel or modular mounting
Features: Pressure adjustment knob, relieving function, balanced poppet, and optional pressure gauge.
