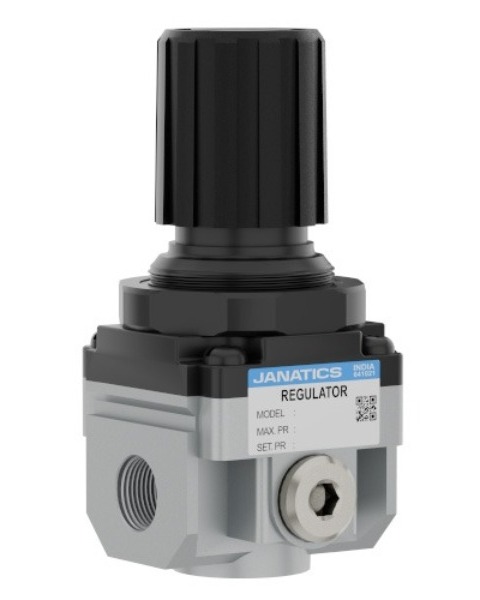

The Janatics Air Regulator R13614 is a pneumatic pressure control component designed to regulate and maintain the required compressed air pressure within industrial pneumatic systems. It helps provide stable air pressure for air cylinders, solenoid valves, pneumatic tools, and automation equipment. Suitable for industrial applications, this Janatics Air Regulator aids in the reliable operation of pneumatic systems and the efficient control of pressure.
Brand: Janatics
Model Number: R13611, R13612, R13613, and R13614
Product Type: Pneumatic Air Pressure Regulator
Port Size: G1/4 (1/4 inch)
Pressure Gauge Port: G1/8
Regulating Pressure Range: 0.5–2 bar, 0.5–4 bar, 0.5–7 bar, and 0.5–10 bar (Standard Variant)
Maximum Supply Pressure: 15 bar
Flow Rate: 600 L/min
Operating Temperature: 5°C to 60°C
Construction: Aluminum, brass, steel, and other materials
Mounting: Panel and modular mounting
Medium: Filtered compressed air
Brand: Janatics
Model Number: R13611, R13612, R13613, and R13614
Product Type: Pneumatic Air Pressure Regulator
Port Size: G1/4 (1/4 inch)
Pressure Gauge Port: G1/8
Regulating Pressure Range: 0.5–2 bar, 0.5–4 bar, 0.5–7 bar, and 0.5–10 bar (Standard Variant)
Maximum Supply Pressure: 15 bar
Flow Rate: 600 L/min
Operating Temperature: 5°C to 60°C
Construction: Aluminum, brass, steel, and other materials
Mounting: Panel and modular mounting
Medium: Filtered compressed air
