Janatics Square Profile Cylinders (ISO 15552 / VDMA 24562 compliant) feature a flat, square outer barrel profile rather than a standard round body. They function similarly to traditional tie-rod cylinders while offering easier mounting, integrated sensor slots/DIN rails, higher structural stability, and an aesthetic design.
1. Double Acting Cylinder: Powered by air in both extension and retraction strokes.
2. Single Acting Cylinder: Air-powered in one direction with a spring return.
3. Double End Double Acting Cylinder: Features a extended piston rod passing through both end covers.
4. Tandem Cylinder: Connects multiple pistons in series to increase output force while maintaining a compact diameter.
5. Non-Rotating Rod Cylinder: Designed with a guided piston rod to prevent rotational movement.
6. Hollow Piston Rod Cylinder: Piston rod has a hollow center for routing wiring, vacuum lines, or media.
7. Low Friction Cylinder: Engineered for low-pressure start-up and high-sensitivity motion control applications.

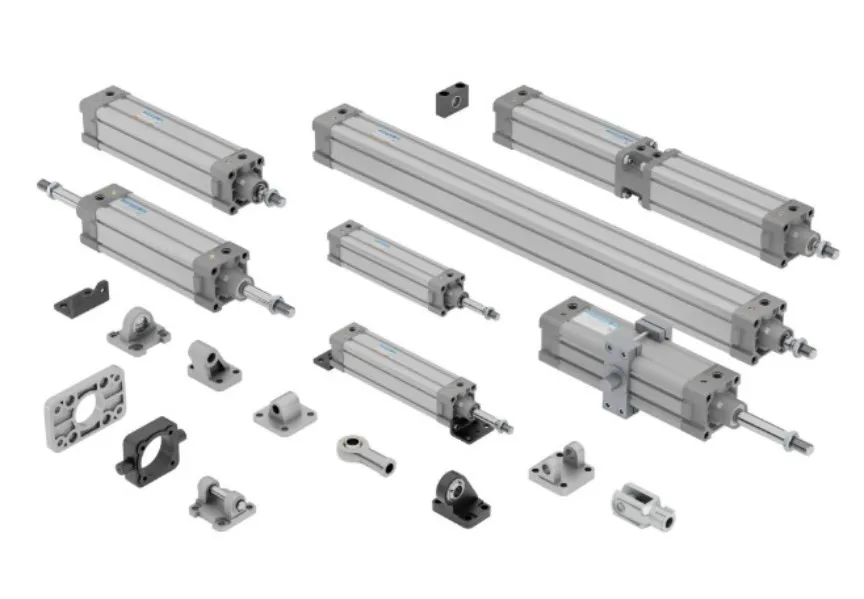

JANATICS SQUARE PROFILE CYLINDER
1. Double Acting Cylinder: Powered by air in both extension and retraction strokes.
2. Single Acting Cylinder: Air-powered in one direction with a spring return.
3. Double End Double Acting Cylinder: Features a extended piston rod passing through both end covers.
4. Tandem Cylinder: Connects multiple pistons in series to increase output force while maintaining a compact diameter.
5. Non-Rotating Rod Cylinder: Designed with a guided piston rod to prevent rotational movement.
6. Hollow Piston Rod Cylinder: Piston rod has a hollow center for routing wiring, vacuum lines, or media.
7. Low Friction Cylinder: Engineered for low-pressure start-up and high-sensitivity motion control applications.
JANATICS SQUARE PROFILE CYLINDER
