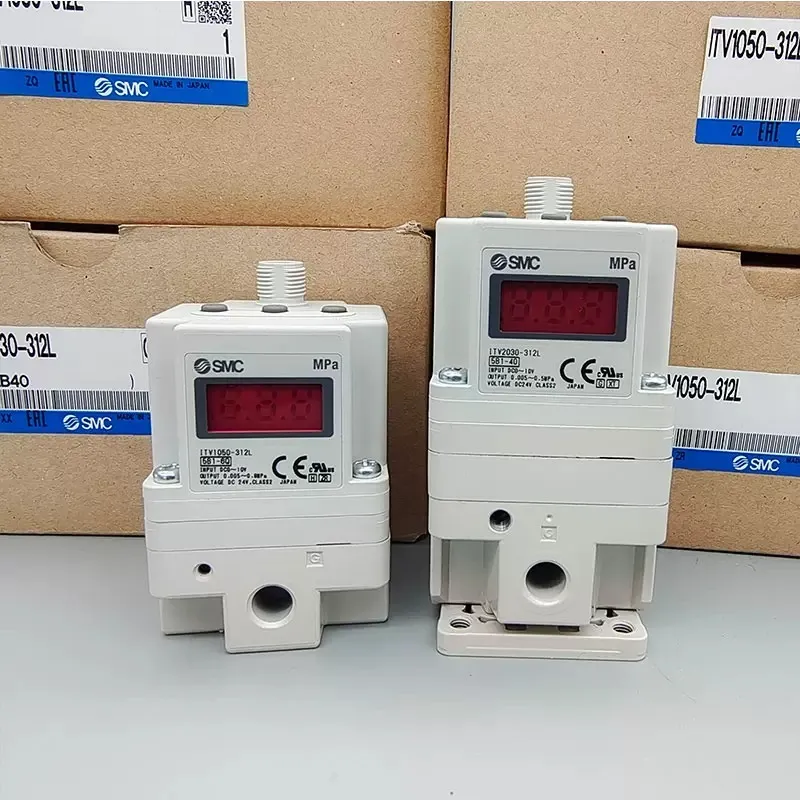

TV2030 key specifications
Series: ITV2000
Model: ITV2030
Pressure range: 0.005–0.5 MPa
Maximum supply pressure: 1.0 MPa
Minimum supply pressure: Set pressure + 0.1 MPa
Power supply: 24 VDC ±10%
Input signals: 4–20 mA, 0–20 mA, 0–5 V, 0–10 V depending on configuration
Monitor output: 1–5 VDC or 4–20 mA depending on configuration
Port sizes: 1/4 and 3/8 options are available in the ITV2000 series
Linearity: ±1% F.S. or less
Hysteresis: 0.5% F.S. or less
Series: ITV2000
Model: ITV2030
Pressure range: 0.005–0.5 MPa
Maximum supply pressure: 1.0 MPa
Minimum supply pressure: Set pressure + 0.1 MPa
Power supply: 24 VDC ±10%
Input signals: 4–20 mA, 0–20 mA, 0–5 V, 0–10 V depending on configuration
Monitor output: 1–5 VDC or 4–20 mA depending on configuration
Port sizes: 1/4 and 3/8 options are available in the ITV2000 series
Linearity: ±1% F.S. or less
Hysteresis: 0.5% F.S. or less
