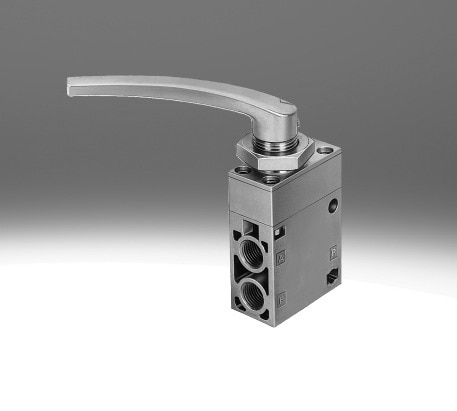

Festo Manually actuated FP, H, TH

1) 3/2

• Normally open/closed

• Mechanical spring

• Vacuum operation possible

• Directly actuated

• Ducted exhaust air

• detenting (bistable) or non-detenting (monostable)

2) 5/2

• Mechanical spring

• Vacuum operation possible

• Directly actuated

• Ducted exhaust air

• detenting (bistable) or non-detenting (monostable)

Innovative:

• Small and compact for a wide range of pneumatic applications

• Numerous valve functions can be selected: 3/2-way and 5/2-way functions

• With a flow rate of up to 600 l/min, the valves offer outstanding pneumatic performance for a wide range of applications

• Lightweight

• Minimal actuating forces

Versatile:

• The flexibility of pneumatic working ports provides a practical way of solving individual requirements

• Round silencer for ducted exhaust air

• Partially suitable for vacuum

• Partial reverse operation possible

• Actuation: direct

• Pressure range from vacuum to 10 bar possible

• Design as pushbutton valve, toggle lever valve, hand lever valve, finger lever valve or foot valve

Operationally safe:

• Durable thanks to proven poppet valves

• Sturdy thanks to metal or polymer housing and connection thread or connecting pieces
