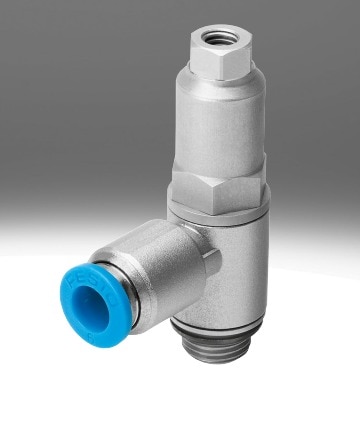

Festo Piloted Check Valve HGL, VBNF, H,HA,HB

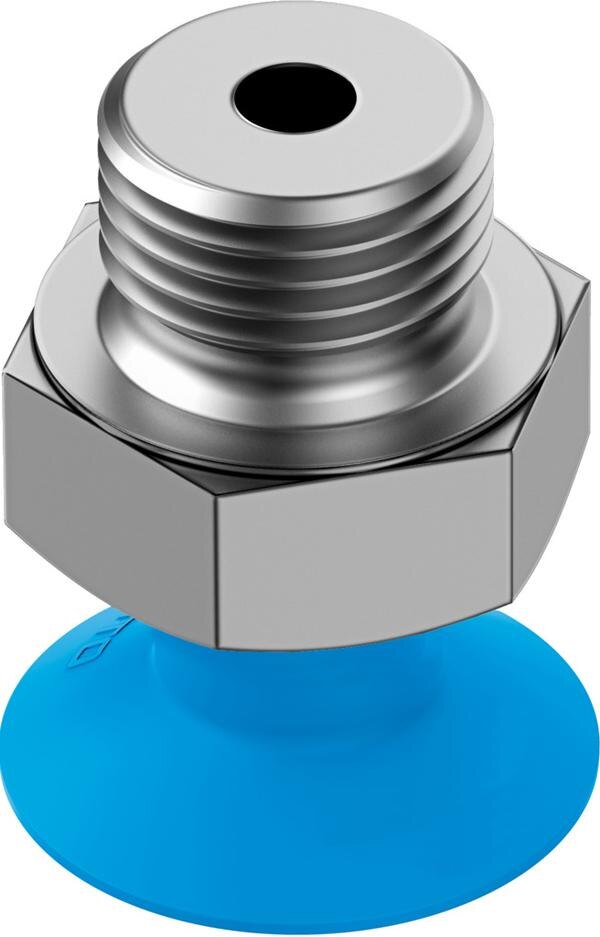

Suction cup with connection VAS, VASB The VAS(B) series is the right solution for transporting workpieces with a wide range of weights, surfaces and shapes. Sturdy and reliable Suction cups with fixed connecting thread 11 suction cup diameters Round suction cup, bellows Vacuum connection on top, on side Screw-in thread Variants suitable for battery production according to F1A

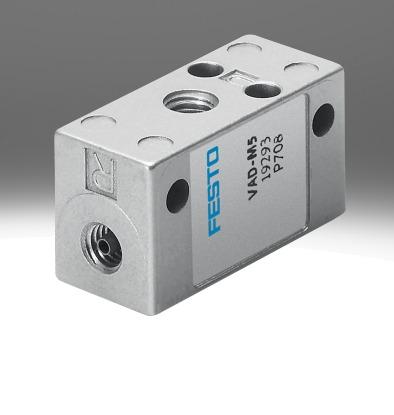

Vacuum generators with sturdy aluminium housing for direct connection of a suction cup. • Compressed air flowing from 1 to 3 generates a vacuum at port 2 in accordance with the ejector principle. • The low exhaust air noise during blowing can be further dampened by using a silencer in port 3. • Workpieces can bepicked up in any position.When the compressed air is switched off, suction stops and the vacuum breaks down. • During suction with vacuum generator VAK, a volume of approx. 32 cubic centimetres is filled with compressed air. This creates an ejector pulse when the input pressure is switched off, reliably releasing the workpiece from the suction cup. • Max. switching frequency approx. 10 Hz at 6 bar and with approx. 1 m of suction line.

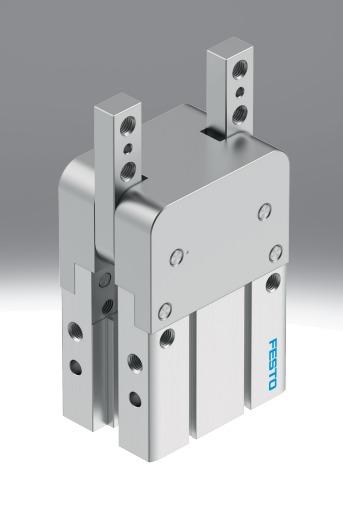

1) Angle gripper DHWC 2) Angle gripper HGWM 3) Angle gripper DHWS The economical angle gripper with high repeat accuracy and high torque is particularly suitable for small parts handling and its low dead weight, compact design and long service life are really impressive. Lateral gripper jaw support for high torque loads Max. repetition accuracy Can be used as a double-acting or single-acting gripper Single-acting variant with gripping force backup, normally open (NO) Suitable for external and internal gripping Wide range of adaptation options on the drives Sustainable in production thanks to reduced use of materials
