FESTO ROUND CYLINDERS
Description
1) Round cylinder, double-acting DSNU
2) Round cylinder DSNU-S
Very durable cylinder based on ISO 6432 with self-adjusting end-position cushioning and extensive accessories.
Wide range of variants for customised applications
Good running performance and long service life
Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
Piston rod with female or male thread
For position sensing
-Round cylinder DSNU-S
Slimmer and shorter than ever before. Ideal for tight installation spaces. Extremely sturdy thanks to its resilient materials.
Short variant of ISO cylinder DSNU
Quick and easy installation, even in tight spaces
Light weight
Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
Piston rod with male thread
For position sensing
Variants recommended for production systems for manufacturing lithium-ion batteries
Sustainable in production thanks to reduced use of materials
-Round cylinder, single-acting ESNU
Very durable cylinder based on ISO 6432 with self-adjusting end-position cushioning and extensive accessories.
Wide range of variants for customised applications
Good running performance and long service life
Piston rod with female or male thread
For position sensing
-Round cylinder EG-PK
-Round cylinder CRDSNU
-Round cylinder CRHD
Round cylinders

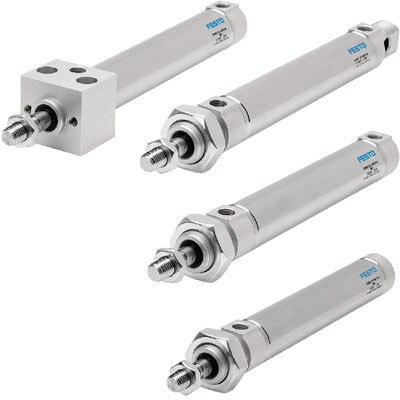

Festo round cylinders are pneumatic piston rod cylinders that can be installed in a space-saving way thanks to their round design – even in tight spaces. What all round cylinders have in common is excellent operational performance, a long service life, and quick and easy installation. The piston rod cylinders are available both as double-acting and single-acting drives, as well as pneumatic cylinders according to standard ISO 6432. To sense the piston position, cylinder sensors can also be mounted on the cylinder barrel using a kit.
Wide product selection from Festo
Festo round cylinders offer a wide range of options for many different application areas. For especially tight installation spaces, for example, we provide the compact version of the standards-based cylinder, which is even smaller and lighter. Self-adjusting pneumatic end-position cushioning, which does not require an adjusting screw, is available from Festo in addition to elastic or adjustable pneumatic end-position cushioning. Self-adjusting pneumatic end-position cushioning saves time during installation and adapts optimally to load and speed changes. Plus, you can choose piston diameters from 2.5 mm to 100 mm
