FESTO STANDARDS PROFILE CYLINDER
Description

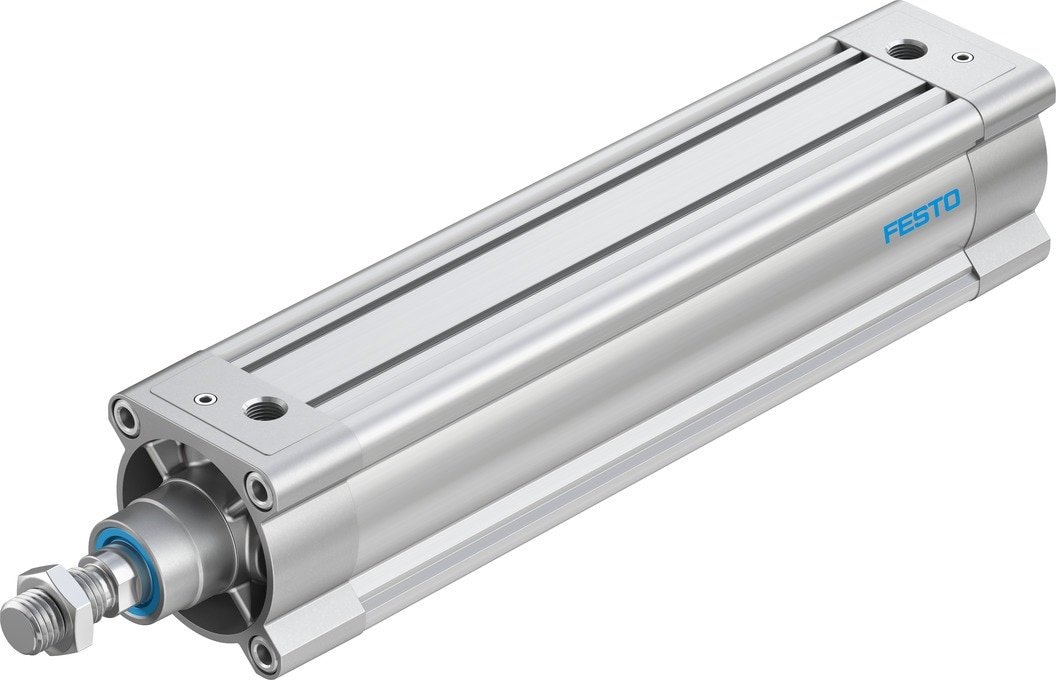

1) Standards-based cylinder DSBC
2) Standards-based cylinder CRDNG
3) Standards-based cylinder DSBF
4) Standards-based cylinder DSBG
1)
Standards-based profile cylinder to ISO 15552 with a wide variety of mounting options.
Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
ISO 15552 (ISO 6431, VDMA 24562)
Sustainable thanks to extended life cycle and easier repairs
Standard profile with two sensor slots
Wide range of variants for customised applications
Comprehensive range of mounting accessories for just about every type of installation
For position sensing
Variants recommended for production systems for manufacturing lithium-ion batteries
2)
Standards-based cylinder CRDNG
Corrosion resistant for aggressive ambient conditions. Variants: through piston rod, heat-resistant version.
ISO 15552 (ISO 6431, VDMA 24562)
Corrosion resistant against aggressive ambient conditions
Easy-to-clean design
Variants: through piston rod, heat-resistant design
Threaded mounting, mounting via accessories
For position sensing
3)
Standards-based cylinder DSBF
ISO cylinder with dimensions to ISO 15552. NSF-H1 grease and FDA-compliant sealing material even in the basic design. Optionally available with self-adjusting end position cushioning PPS and dry-running seal.
ISO 15552
Increased corrosion protection
Easy-to-clean design
FDA-approved lubrication and sealing on the basic version
Long service life thanks to optional dry-running seal
Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
For position sensing
Sustainable thanks to extended life cycle and easier repa
4)
Standards-based cylinder DSBG
Sturdy tie rod cylinder to ISO 15552 standard.
ISO 15552 (ISO 6431, VDMA 24562)
Sturdy tie rod design
Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
Comprehensive range of mounting accessories for just about every type of installation
For position sensing
Sustainable thanks to extended life cycle and easier repairs
