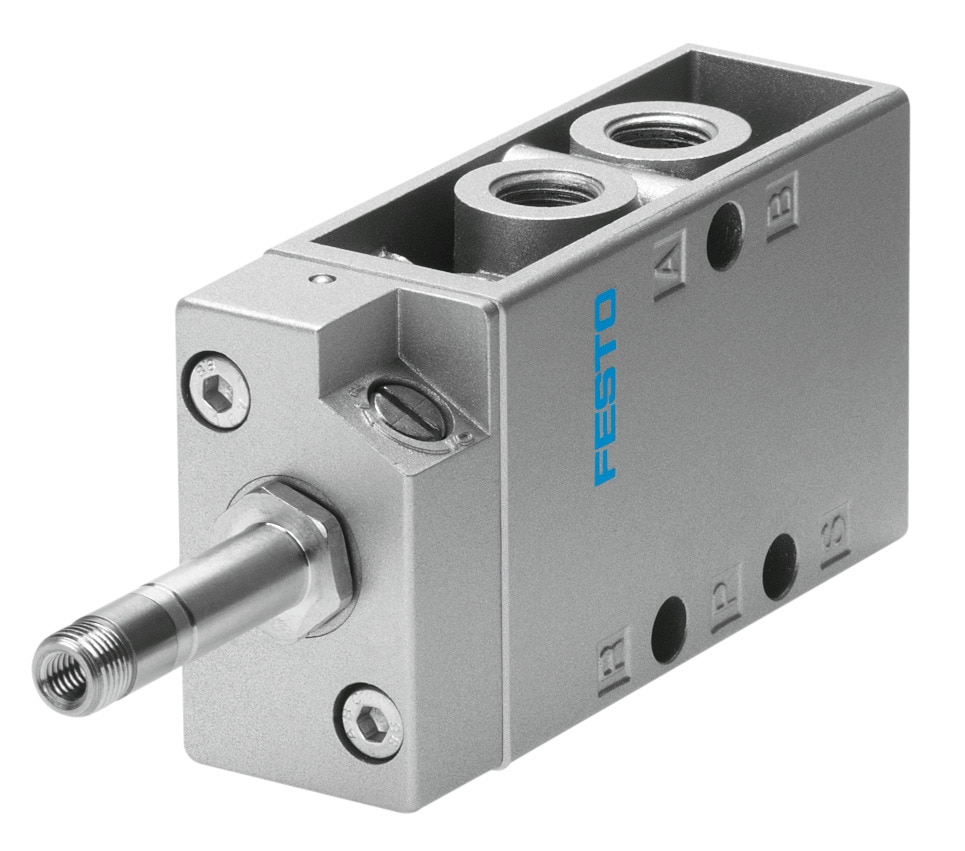

Festo Tiger Classic Solenoid Valve MCH AND MFH

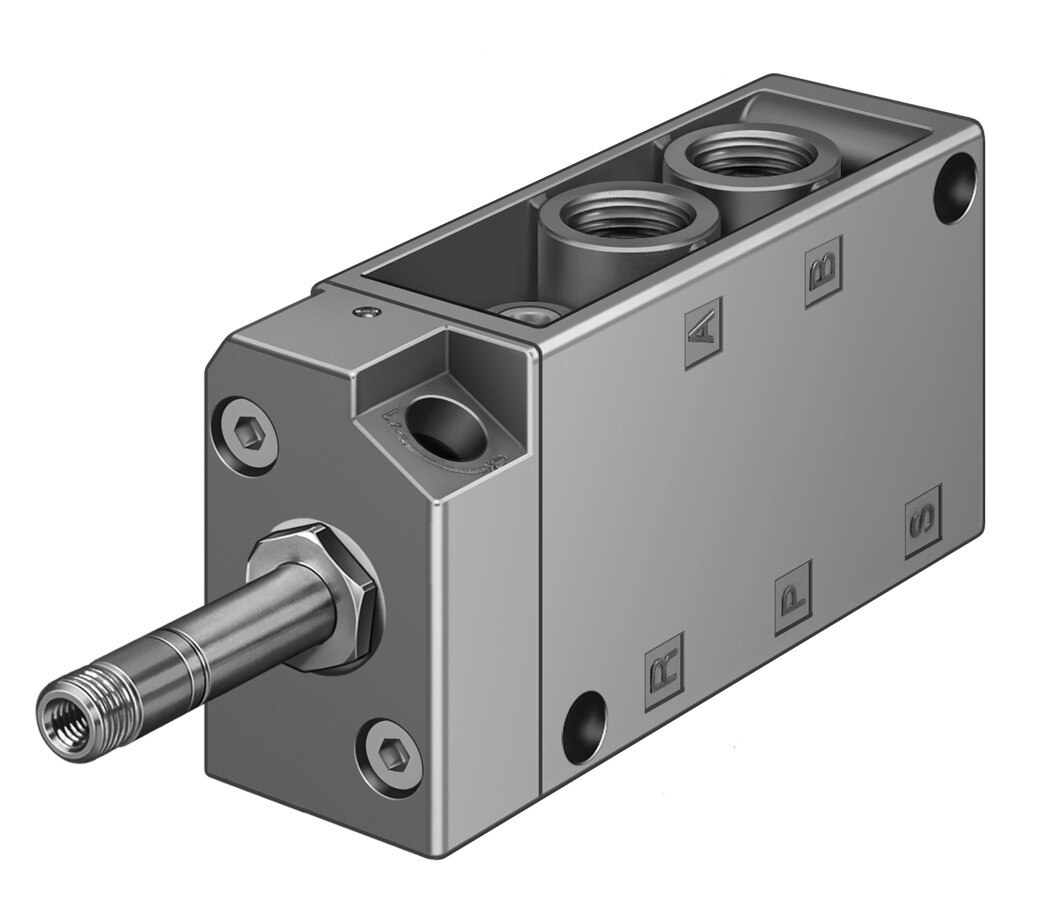

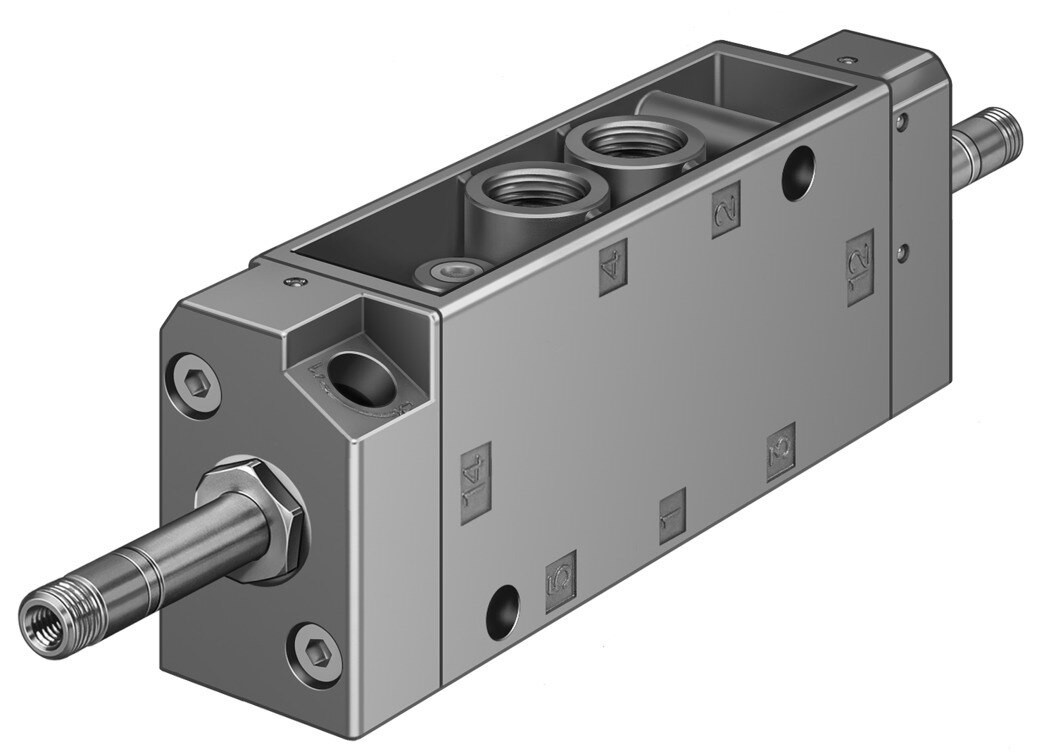

FESTO SOLENOID VALVES SERIES :- MCH, MFH, JMFH, MOFH, JMFDH, VL/O, VL AND JDH

General information:

• Particularly sturdy poppet valve principle for all 3/2- and 5/2-way valves

• Pneumatically actuated or electrically with F solenoid coil

• With flow rate performance of up to 7500 l/min

• With internal or external pilot air

• Pipe connection thread in sizes G1/8, G1/4, G1/2 and G3/4

• Proven mounting using hollow bolt on PAL or PRS rail (without ATEX category)

• Optimised switching times thanks to patented U-ring and servo control

• Note: Valves for potentially explosive atmospheres (ATEX category) are not suitable for mounting on PAL manifold rails or PRS manifold blocks.

F solenoid coils:

• Voltage 12 to 230 V DC; 12 to 240 V AC (50 to 60 Hz)

• Power consumption 4.1 to 5.5 W DC; 3.85 to 9 VA AC

• Selected types in accordance with the ATEX directive for potentially explosive atmospheres

• Solenoid coil can be easily replaced at a later date

• Solenoid coil not included in the scope of delivery

Solenoid valve, supplementary product range MC, MCH

Manifold mounting or individual valve

Valves for special applications

With or without manual override
