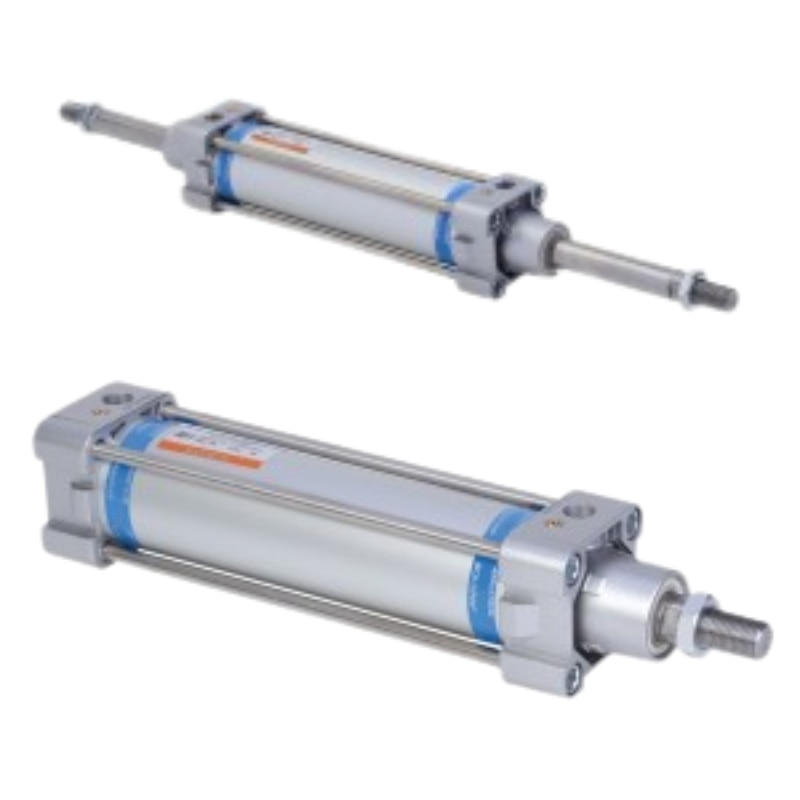

JANATICS A12 AND A13 SERIES ISO 6431 (Tie rod)
In stock
Description
JANATICS AIR CYLINDER SINGLE ACTING CYLINDER
A12 AND A13 SERIES
A12 NON MAGNETIC CYLINDER
A13 MAGNETIC CYLINDER
ISO 6431 STANDARD CYLINDER
- Standard Cylinder A12, A13
- Double End Cylinder A10, A11
As per ISO 6431 / CETOP RP43P, RP53P standards
Adjustable cushioning at both ends
Wide varieties of mountings
Low friction
Long life
SINGLE ACTING CYLINDER TIE ROD
A12 AND A13 SERIES
CYLINDER BORE SIZES :- 32 , 40 ,50 ,63 ,80 AND 100
STOCKES :- 25MM TO 500 MM
WORKING PRESSIRE ;- 2 TO 10 BAR
TEMPERATURE -10 TO 60 C
MATERIALS OF CONSTRUCTION :- ALUMINIUM , BRASS , NITRILE , STEEL , ACETAL
ACCESSORIES :- MALE CLEVIS , FEMALE CLEVIS , CLEVIS FOOT BRACKET , WALL MOUNTING , TRUNNION BRACKET , ROD AND FROK , ROD AND ALIGNER , ROD AND EYE ,
