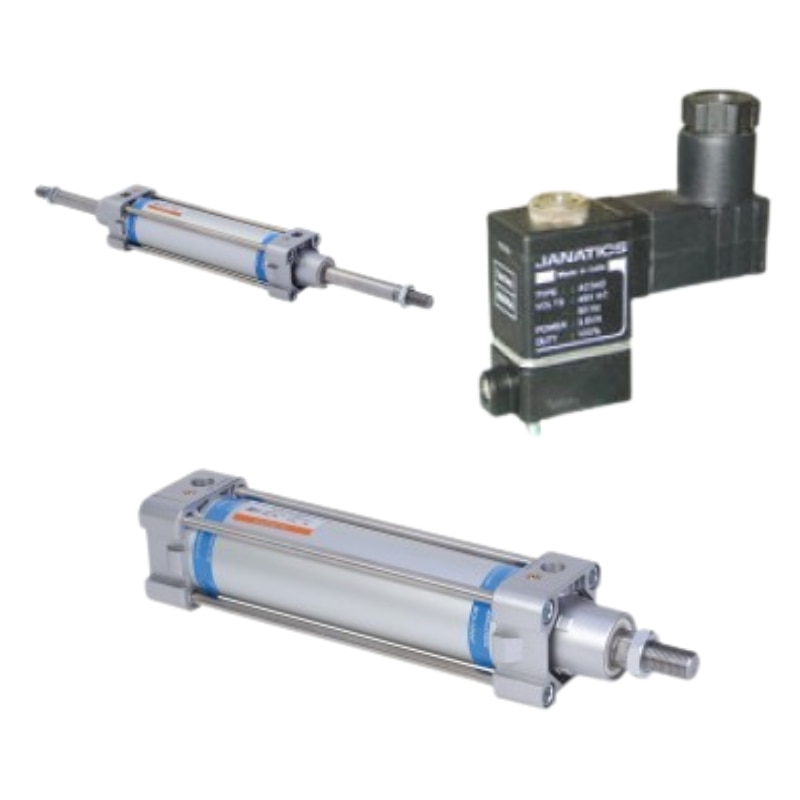

JANATICS A27 AND A28 TIE ROD CYLINDER

- Standard Cylinder A27,A28

- A27 MAGNETIC AIR CYLINDER

-A28 NON MAGNETIC AIR CYLINDER

-TIE ROD STANDARD CYLINDER

-AIR CYLINDERS Double Acting - Ø32 - 100 mm

-As per ISO 15552 / VDMA 24562 standards

-Adjustable cushioning at both ends with elastomer pads

-Wide varieties of mountings

-Magnetic and Non magnetic version

-Optional - High temperature (Viton seals) 150°C max.**

-Optional - Non corrosive Stainless steel piston rod and piston rod lock nut (SS 304)*-

CYLINDER BORE SIZES :- 32 , 40 , 50, 63, 80, 100 MM

CYLINDER STROKES SIZES :- 25MM TO 500 MM

The Janatics A27 and A28 series are standard pneumatic cylinders designed for industrial applications, adhering to ISO 15552 and VDMA 24562 standards. Here’s a concise overview based on available information

Type:

A27: Magnetic (equipped for piston position detection)

.A28: Non-magnetic (no magnetic position detection).Design: Double-acting cylinders, meaning they use compressed air for both extension and retraction, ensuring precise motion control.

Bore Sizes: Available in 32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm, and 125 mm

Stroke Lengths: Range from 25 mm to 1000 mm (e.g., A27080025O for 80 mm bore with 25 mm stroke, A270801000O for 1000 mm stroke).
