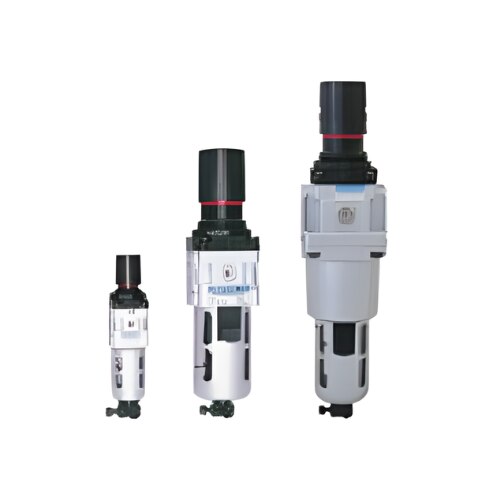

Janatics Filter Regulator Combination

- Janatics air filter regulator

- Sizes: G1/4, G3/8, G1/2, G3/4, G1

- FRC with Manual Drain

Modular type

Suitable for panel mounting

Filter

• Bronze filtering element

• Separator and shield for efficient moisture separation

Regulator

• Diaphragm operated, relieving type

• Pressure compensated by balanced poppet

• Flow compensated in models FRC14, FRC15 and FRC17 for faster response

• Non raising press to lock adjusting knob for locking at any set pressure

Steel bowl guard, bayonet type on FRC14, FRC15 & FRC17 models and threaded type on FRC13 model

Good flow and regulating characteristics

- FRC with Internal Autodrain

Modular type

Suitable for panel mounting

Filter

• Bronze filtering element

• Separator and shield for efficient moisture separation

• Bayonet type steel bowl guard

Internal auto drain

• Float type, no electrical connections required

• Provided with manual drain

• Provision for drain tube connection, to take the condensate away from the unit, to keep the working area clean

Regulator

• Diaphragm operated, relieving type

• Pressure compensated by balanced poppet

• Flow compensated for faster response

• Non raising Press to lock adjusting knob for locking at any set pressure

Good flow and regulating characteristics

- FRC with Metal bowl

Modular type

Suitable for panel mounting

Filter

Bronze filtering element

Separator and shield for efficient moisture separation

Press type manual drain for easy operation

Suitable for automatic drain

Regulator

Diaphragm operated, relieving type

Pressure compensated by balanced poppet

Flow compensated

Non raising Press to lock adjusting knob

Aluminium bowl guard, bayonet type (3/4 and 1' only)

Good flow and regulating characteristics
