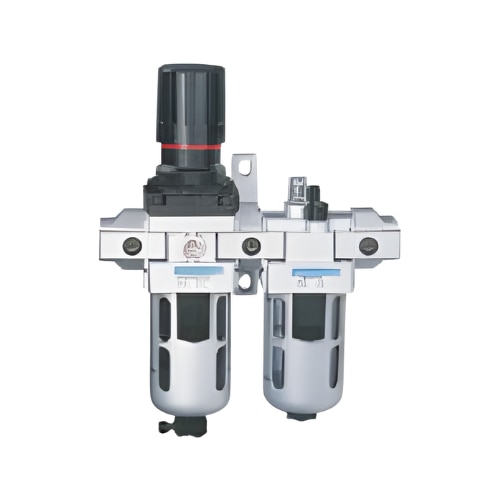

Janatics FRCL Modular

- Filter Regulator Combination Lubricator with Modular

- FRCLM without Piping Adopter

- Sizes: G1/4, G3/8, G1/2, G3/4, G1

-FRCLM with Internal Auto drain

-Modular type for easy and fast maintenance

Suitable for wall mounting

Filter

• Bronze filtering element

• Separator and shield for efficient moisture separation

Internal Autodrain

• Float type, no electrical connections required

• Manual drain is also provided / possible

• Provision for drain tube connection, to take the condensate away from the unit, to keep the working area clean

Regulator

• Diaphragm operated, relieving type

• Pressure compensated by balanced poppet

• Flow compensated (with venturi) for faster response

• Non raising Press to lock adjusting knob for locking at any set pressure

Lubricator

• Fog / Mist type Lubricator

• Fine adjustment of lubrication

• Lubrication proportional to flow

Steel bowl guard, bayonet type on FRLM14, FRLM15 & FRLM17 models

Good flow and regulating characteristics

- FRCLM without piping adaptor

Modular type for easy and fast maintenance

Suitable for wall mounting

Filter

• Bronze filtering element

• Separator and shield for efficient moisture separation

• Press type manual drain for easy operation

Regulator

• Diaphragm operated, relieving type

• Pressure compensated by Balanced poppet

• Flow compensated in models FRCLM14, FRCLM15 and FRCLM17 for faster response

• Non raising Press to Lock adjusting knob for locking at any set pressure

Lubricator

• Fog/Mist type Lubricator

• Fine adjustment of lubrication

• Lubrication proportional to flow

Steel bowl guard, bayonet type on FRCLM14, FRCLM15 and FRCLM17 models and threaded type on FRLM13 model

Good flow and regulating characteristics
