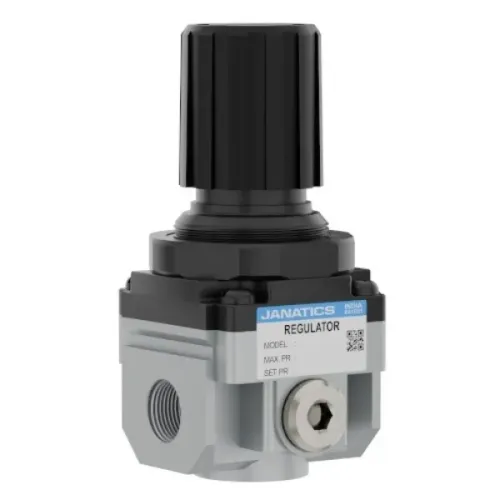

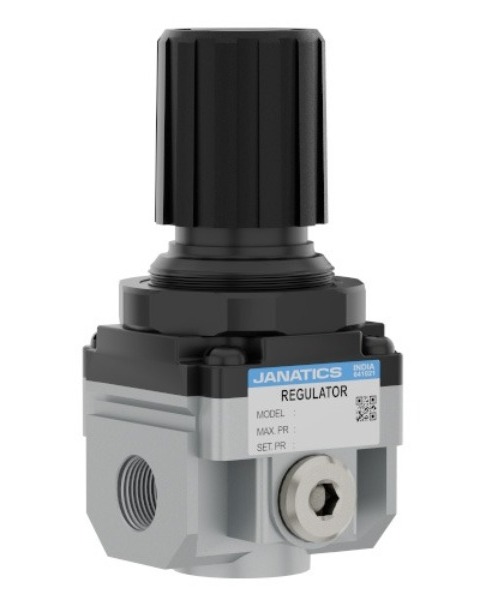

The Janatics R15634 air regulator is an industrial pneumatic pressure regulator designed to control and maintain a constant pressure of compressed air within pneumatic systems. It features a diaphragm-operated 'relieving mechanism, ' a 'balanced poppet' for pressure balancing, and a 'non-rising press-to-lock' adjustment knob for easy pressure setting. With G1/2' pneumatic connections and a maximum regulating pressure of up to 10 bar, this regulator is suitable for industrial automation, pneumatic machinery, and air preparation systems. It supports both panel and modular mounting.
Brand: Janatics
Model Number: R15631, R15632, R15633, R15634
Product Type: Pneumatic Air Pressure Regulator
Port Size: G1/2'
Pressure Regulation Range: 0.5–2 bar, 0.5–4 bar, 0.5–7 bar, and 0.5–10 bar
Maximum Supply Pressure: 15 bar
Flow Rate: 2, 500 liters/minute
Operating Medium: Filtered compressed air
Operating Temperature: 5°C to 60°C
Brand: Janatics
Model Number: R15631, R15632, R15633, R15634
Product Type: Pneumatic Air Pressure Regulator
Port Size: G1/2'
Pressure Regulation Range: 0.5–2 bar, 0.5–4 bar, 0.5–7 bar, and 0.5–10 bar
Maximum Supply Pressure: 15 bar
Flow Rate: 2, 500 liters/minute
Operating Medium: Filtered compressed air
Operating Temperature: 5°C to 60°C
