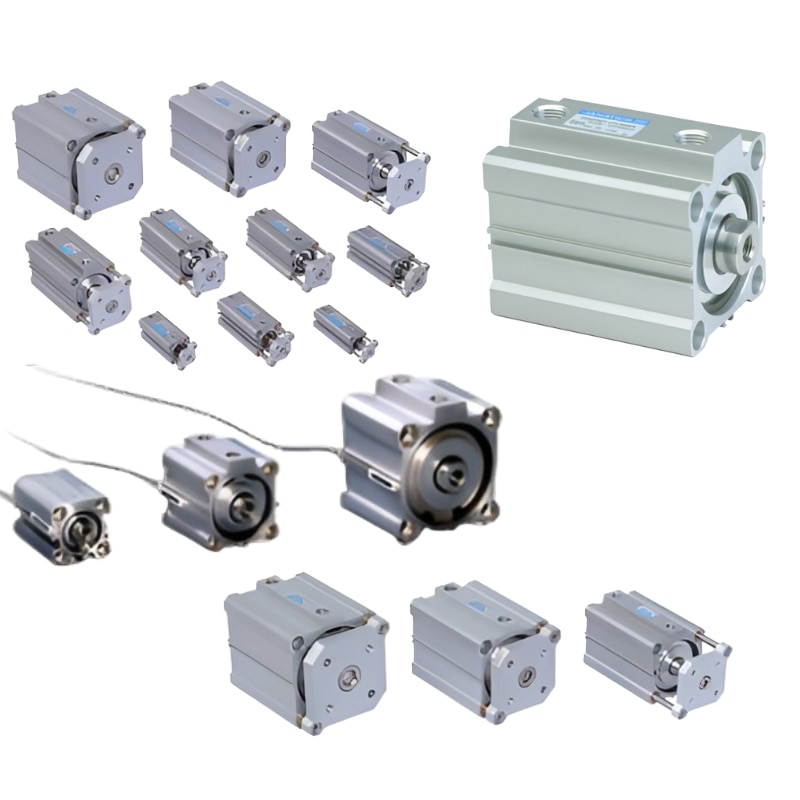

Compact Cylinders A02 AND A03 SERIES

Compact Cylinder A02

Compact Cylinder with Guide Rod

Compact Cylinder with Guide Rod Magnetic

Compact Magnetic Cylinder A03

SERIES A02 AND A03 COMPACT CYLINDER

A02 NON MAGNETIC CYLINDER

A03 MAGNETIC CYLINDER

A02 SERIES COMPACT CYLINDER

WORKING PRESSURE :- 0.5 TO 10 BAR

CYLINDER BORE SIZES :- 12, 16, 20, 25, 32, 40, 50, 63, 80,100

CYLINDER STROKES SIZES:-5MM TO 100 MM

TEMPERATURE :- -10 TO 60C

Compact, lightweight, and space saving design

Large clamping force in relation to their size

Low friction (Comparing to other series)

Elastomer end cushion

A03 COMPACT CYLINDER MAGNETIC

COMPACT CYLINDERS MAGNETIC Double Acting ( Ø12 - 100 ) mm

Compact, lightweight, and space saving design

Large clamping force in relation to their size

Low friction (Comparing to other series)

Elastomer end cushion

CYLINDER BORE SIZES :- 12, 16, 20, 25, 32, 40, 50, 63, 80, 100

CYLINDER STROKES SIZES :- 5MM TO 100MM

WORKING PRESSURE :- 0.5 TO 10 BAR

A03 MAGNETIC CYLINDER

MAGNETIC REED SWITCH

A12, A16, A20, A25 BORE REED SWITCH AM2012

A32, A40, A50, A63, A80, A100 REED SWITCH AM2032

CYLINDER :- FEMALE , MALE THREDAD
