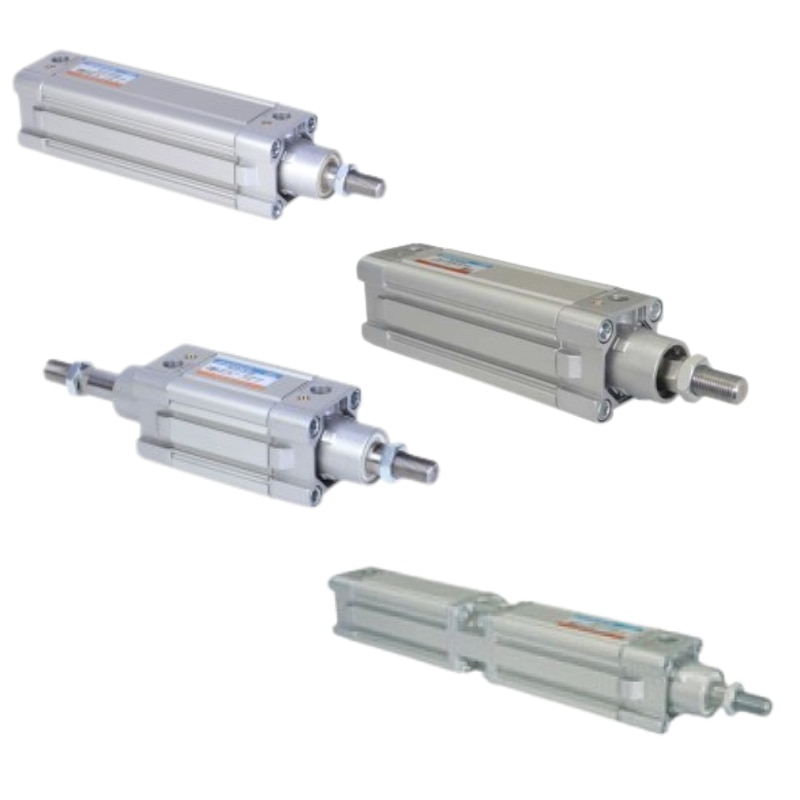

JANATICS PROFILE (Square ) CYLINDER A23 AND A24 SERIES

- Non Rotating Rod Cylinder A23H, A24H

- Standard Cylinder A23, A24

- Double End Cylinder A20, A21

- Tandem Cylinder A23T, A24T

-A23H AND A24H SERIES

The A23H / A24H series are double-acting square-profile cylinders manufactured per VDMA 24562 / ISO 15552 standards, with bore sizes from Ø32 mm to Ø63 mm

They feature a hexagonal piston rod that inherently prevents rotation, crucial for alignment-sensitive mechanisms

Available in magnetic (A24H) and non-magnetic (A23H) versions, with a standard magnetic sensor design compatible across all sizes

Fresh Catalog

Mounting options: Extensive choices including foot, flange, clevis, trunnion, etc., aligned with ISO 15552/VDMA 24562 standards

Stroke lengths: Standard options from 25 mm up to 500 mm depending on bore size, with cushioning strokes ranging ~21–28 mm depending on configuration

Operating pressure: Designed for 0.5–10 bar, with filtered and lubricated compressed air as the media

- A23 AND A24 PROFILE NONMAGNETIC AND MAGNETIC CYLINDER

The A23 (non-magnetic) and A24 (magnetic) models are double-acting square‑profile pneumatic cylinders, suitable for applications requiring precision, durability, and integrated sensor capabilities

They span bore sizes from Ø 32 mm up to Ø 100 mm (and in some documentation up to 125 mm

Magnetic piston (A24) allows for easy use of PNP/NPN sensors without needing external magnets; A23 is the non-magnetic variant

Feature Specification

Series A23 (non-magnetic) / A24 (magnetic)

Bore Range :- Ø 32, 40, 50, 63, 80, 100 (125 mm also mentioned in some sources)

Stroke Options :- Standard strokes: 25–500 mm; cushioning strokes: ~21–28 mm depending on bore

Operating Pressure :- 0.5–10 bar

Temperature Range :- Ambient: –10 °C to +60 °C; Media: +5 °C to +50 °C; Optional high‑temp to +150 °C with Viton seals

Construction Materials :- Aluminium barrel; optional stainless‑steel piston rod and lock nut (SS 304)

DOUBLE END CYLINDER A20 AND A21 SERIES

Double End Double Acting Cylinders (Square type) Ø32 - 125 mm

Adjustable cushioning at both ends with elastomer pads

Wide varieties of mountings as per ISO 15552 / VDMA 24562 standards

Magnetic and Non magnetic version

Aluminium profile (square) cylinder barrel

Magnetic sensor common for all sizes ( Refer Magnetic sensor catalogue )

Optional - High temperature (Viton seals) 150°C max.**

Optional - Non corrosive Stainless steel piston rod and piston rod lock nut (SS 304)**

JANATICS TANDAM CYLINDER A23T AND A24T SERIES

Tandem Cylinders - ( Series A23T, A24T - Ø32 to 125 mm )

Adjustable cushioning at both ends

Wide varieties of mountings as per ISO 15552 / VDMA 24562 standards

Magnetic and Non magnetic version

Aluminium profile (square) cylinder barrel

Magnetic sensor common for all sizes (Refer Magnetic sensor catalogue)

Piston rod - Non rusting (SS 303 material on request)**
